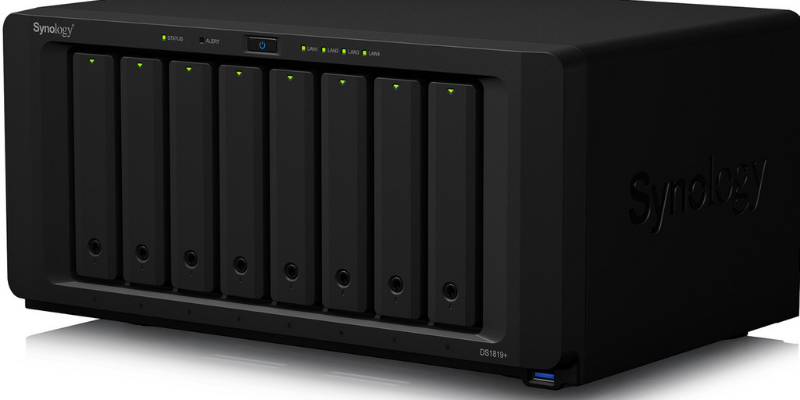

DiskStation DS1819+

Liên Hệ

– Sản phẩm: Ổ lưu trữ mạng (NAS)

– Tên Hãng: Synology

– Model: DS1819+ (4Gb)

– Số khay đựng ổ cứng: 8 Khay

– Bộ VXL: Atom C3538 Quad Core 2.1GHz

– Bộ nhớ: 4Gb

– Hỗ trợ Raid: Raid 0,1,5,6,10

– Chuẩn ổ cứng/ Dung lượng tối đa: 2.5Inch và 3.5Inch Sata/ 112TB (14 TB x 8)

– Cổng giao tiếp: USB 3.0 ports X 4, eSATA X 2 ; Gigabit x4

– Số lượng User: Số User tối đa: 2048, Số kết nối đồng thời: 1500 / 2000 (32GB Ram)

– Kích thước: 166 mm x 343 mm x 243 mm

– Trọng lượng: 6 kg

– Mô tả khác: Dễ dàng thay lắp ổ và cài đặt. Hỗ trợ 40 camera IP

Danh mục: Thiết Bị Mạng, Khác, Nas Từ khóa: ds1819, nas

Mô tả

Synology DS1819+

DiskStation DS1819+ là một thiết bị NAS nhỏ gọn với thiết kế có thể mở rộng, cùng khả năng lưu trữ các ứng dụng đa năng phù hợp cho các doanh nghiệp vừa và nhỏ. DS1819+. Có 8 khay ổ cứng, đây là thiết bị NAS để bàn mới nhất trong dòng Plus. Nó có hiệu suất cao hơn 57% trong việc đọc tuần tự so với phiên bản trước đó.

Đặc tính của DiskStation DS1819+

DS1819+ có thể hỗ trợ 4 cổng Gigabit Ethernet và 1 khe mở rộng PCIe cung cấp cấu hình linh hoạt, và có thể đáp ứng nhu cầu cho khối lượng công việc lớn. Thiết bị hỗ trợ thẻ bổ sung 10GbE, để tăng cường băng thông truyền dữ liệu.

Thiết bị này còn có thể hỗ trợ thẻ chuyển đổi SSD M.2, để tăng IOPS ngẫu nhiên với bộ nhớ cache SSD M.2 NVMe/SATA. Nó tích hợp 4 cổng Gigabit Ethernet, hỗ trợ chuyển đổi dự phòng và Link Aggregation.

DS1819+ chạy trên hệ điều hành DiskStation Manager dành cho các thiết bị NAS Synology. Thiết bị cung cấp nhiều ứng dụng giúp nâng cao năng suất công việc. Ngoài ra, nó còn sẵn sàng mở rộng khi doannh nghiệp của bạn lớn mạnh

DS1819 + là một NAS có tới 8 khay cung cấp hiệu suất vượt trội với khả năng mở rộng tuyệt vời. Nhờ vậy, cho phép mở rộng liền mạch và nâng cấp, để đáp ứng nhu cầu kinh doanh đang phát triển của bạn

DiskStation DS1819+ -Thiết bị lưu trữ thông minh

* Số lượng Tray: 8

* Các vị trí ổ đĩa tối đa với bộ mở rộng: 18

* Loại ổ tương thích: 3.5″ SATA HDD, 2.5″ SATA HDD, 2.5″ SATA SSD

* Dung lượng nội bộ tối đa: 112 TB (14 TB drive x 8)(Dung lượng có thể khác nhau tùy theo loại RAID)

* Kích thước đơn lẻ tối đa: 108 TB

* Thay nóng ổ đĩa: Có

Các vị trí ổ đĩa tối đa với bộ mở rộng: 18
Loại ổ tương thích: 3.5″ SATA HDD, 2.5″ SATA HDD, 2.5″ SATA SSD
Dung lượng nội bộ tối đa: 112 TB (14 TB drive x 8)(Dung lượng có thể khác nhau tùy theo loại RAID)
Kích thước đơn lẻ tối đa: 108 TB
Thay nóng ổ đĩa: Có

“Loại ổ đĩa tương thích” cho thấy các ổ đĩa đã được thử nghiệm, để tương thích với các sản phẩm của Synology.Với thuật ngữ này, nó chỉ ra tốc độ kết nối tối đa của mỗi vị trí ổ đĩa

Việc mở rộng khối lượng bên trong chỉ được hỗ trợ, nếu kích thước khối kết hợp duy nhất không vượt quá giới hạn tối đa 108TB.

nas, other, thiet-bi-mang- DiskStation DS1819+

1 Status indicator
2 Alert indicator
3 Drive status indicator
4 Drive tray lock

5 Power button and indicator
6 LAN indicator
7 USB 3.0 port
8 Fan

9 Power port
10 Kensington Security Slot
11 1GbE RJ-45 port
12 eSATA port

13 PCIe expansion slot
14 Reset button
15 USB 3.0 port

Hardware Specifications
CPU
CPU Model	Intel Atom C3538
CPU Architecture	64-bit
CPU Frequency	Quad Core 2.1 GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory	4 GB DDR4
Memory Module Pre-installed	4GB (1 x 4GB)
Total Memory Slots	2
Memory Expandable up to	32 GB (16 GB x 2)
Storage
Drive Bays	8
Maximum Drive Bays with Expansion Unit	18
Compatible Drive Type* (See all supported drives)	3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD
Maximum Internal Raw Capacity	112 TB (14 TB drive x 8) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units	252 TB (112 TB + 14 TB drive x 10) (Capacity may vary by RAID types)
Maximum Single Volume Size	108 TB
Hot Swappable Drive
Notes	“Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more) Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB.
External Ports
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
USB 3.0 Port	4
eSATA Port	2
PCIe
PCIe Expansion	1 x Gen3 x8 slot (black, x4 link)
Add-in-card support	M2D18 – Dual M.2 SATA/NVMe SSD adapter card for SSD cache PCIe Network Interface Card (Learn more)
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
Notes	exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth)	166 mm x 343 mm x 243 mm
Weight	6 kg
Others
System Fan	120 mm x 120 mm x 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Brightness adjustable front LED indicators
Power Recovery
Noise Level*	22.2 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	250W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	66.96 W (Access) 29.39 W (HDD Hibernation)
British Thermal Unit	228.63 BTU/hr (Access) 100.35 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI EAC VCCI CCC RCM KC
Warranty	3 Year Hardware Warranty
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number	512
Maximum iSCSI Target Number	128
Maximum iSCSI LUN	256
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read/Write Cache (White Paper)
SSD TRIM
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	Synology Hybrid RAID RAID 5 RAID 6 JBOD
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
File Services
File Protocol	CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections	1,000
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion)	2,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Account & Shared Folder
Maximum Local User Accounts	2,048
Maximum Local Groups	256
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	16
High Availability Manager
Log Center
Syslog Events per Second	800
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2016
Citrix Ready
OpenStack
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users	1,500
Notes	The number of concurrent HTTP connections for Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices	1,000
Maximum Number of Concurrently Connected Devices (with RAM expansion)	2,000
Maximum Number of Hosted Files (btrfs)	1,000,000
Maximum Number of Hosted Files (ext4)	1,000,000
Notes	The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing. Non-encrypted shared folders were used during the aforementioned testing.
Document Viewer
Download Station
Maximum Concurrent Download Tasks	80
exFAT Access (optional)
MailPlus / MailPlus Server
Free Email Accounts	5 (Licenses required for additional accounts)
Maximum number of concurrent users	Up to 150
Maximum Server Performance	1,484,000 emails per day, approx. 45GB
Notes	The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users. For tested models with expandable memory, the maximum amount of RAM was installed. Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Moments
Facial recognition
Subject recognition
Snapshot Replication
Maximum Snapshots per Shared Folder	1024
Maximum of system snapshots	65536
Surveillance Station
Maximum IP cam (Licenses required)	40 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)*	1200 FPS @ 720p (1280×720) 960 FPS @ 1080p (1920×1080) 520 FPS @ 3M (2048×1536) 320 FPS @ 5M (2591×1944) 240 FPS @ 4K (3840×2160)
Total FPS (H.265)*	1200 FPS @ 720p (1280×720) 1200 FPS @ 1080p (1920×1080) 880 FPS @ 3M (2048×1536) 520 FPS @ 5M (2591×1944) 400 FPS @ 4K (3840×2160)
Total FPS (MJPEG)*	560 FPS @ 720p (1280×720) 270 FPS @ 1080p (1920×1080) 190 FPS @ 3M (2048×1536) 110 FPS @ 5M (2591×1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive
Recommended Number of Hosted Files	1,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Connections for PC Clients	550 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes	For tested models with expandable memory, the maximum amount of RAM was installed. Exceeding the limits above may result in longer response time in file operations. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users	1,800
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
Video Transcoding	Group 1 – Type 1 (See more)
Maximum Transcoding Channel Number	1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual Machine Manager
Recommended Virtual Machine Instances	4 (Learn more)
Recommended Virtual DSM Number(Licenses required)	4 (including 1 Free License)
Notes	Virtual Machine Manager is not supported on hosts running Synology High Availability. The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections	30
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	Surveillance Device License Pack D4NS2133-4G DDR4 non-ECC SO-DIMM* RAMEC2133DDR4SO-16G DDR4 ECC SO-DIMM Expansion Unit: DX517 X 2 VS360HD VS960HD Synology Ethernet Adapter E10G18-T1 Synology Ethernet Adapter E10G18-T2 Synology Ethernet Adapter E10G17-F2 Synology M2D18 M.2 SSD adapter card
Notes	Mixed usage of non-ECC and ECC UDIMMs is not supported.
